High Speed Corrugated Profile Roof Sheet Roll Forming Machine

Contact Now* Send an Inquiry to this supplier.
or
Start Order * Name your price

Browse by Category

Contact us

Cangzhou Dixin Roll Forming Machine Co.Ltd
[China]

Address
Fuzhuang Development Zone Cangzhou Hebei
Phone
86-0317-8187572
Contact name
Coco Wang

Quick Information

  • Brand Name: DIXIN
  • Place of Origin: China
  • :

Description

high speed corrugated profile roof sheet roll forming machine

Steel Roof Tile Corrugated And Trapezoidal three layer galvanized roofing tile roll forming machine

  • 1)Our roofing sheet roll forming machine has hand knife at the end of the line.It can help you save Raw Material.
  • 2)Our roofing sheet roll forming machine has two cylinders at least. Because the frictional force of shearing machines is very big. One cylinder machine has shorter using life.
  • 3)Our roll forming machine has protective screening. Safer for the workers

Main technical parameters

If  you have specific requirements, that's no problem,We can meet all your needs.

No.
1Suitable materialcolor steel sheet, galvanized steel sheet, aluminium sheet
2Material width1250mm or as your required
3Material thickness0.3-0.8 or as your required
4Working speed8-12m/min, can be 20-25m/min
5Main motor power5.5kw with cycloidal with reducer
6Hydraulic pump power4kw
7Electrical control systemPLC control system with inverter
8Shaft diameter75mm
9Roller station15 rows, depend on your panel profile drawing
10Rollerhigh grade 45# steel, hard chrome plating
11Working time24 hours
12workers1-2 only
13Cutting head materialCr 12 mould steel with quenched treatment
14Voltage380V 3Phase 50Hz or as your required
15Weight3.5T
16The machine size7000mm*1500mm*1500mm

All the technical parameters for metal roof tile making machine are also made as per the cutomers' requirements.



Price

  • Delivery Port : Tianjin

Product Image

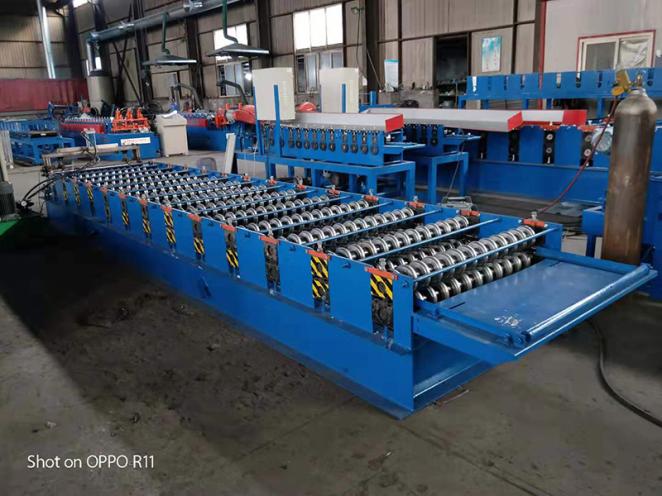

  • High Speed Corrugated Profile Roof Sheet Roll Forming Machine image
